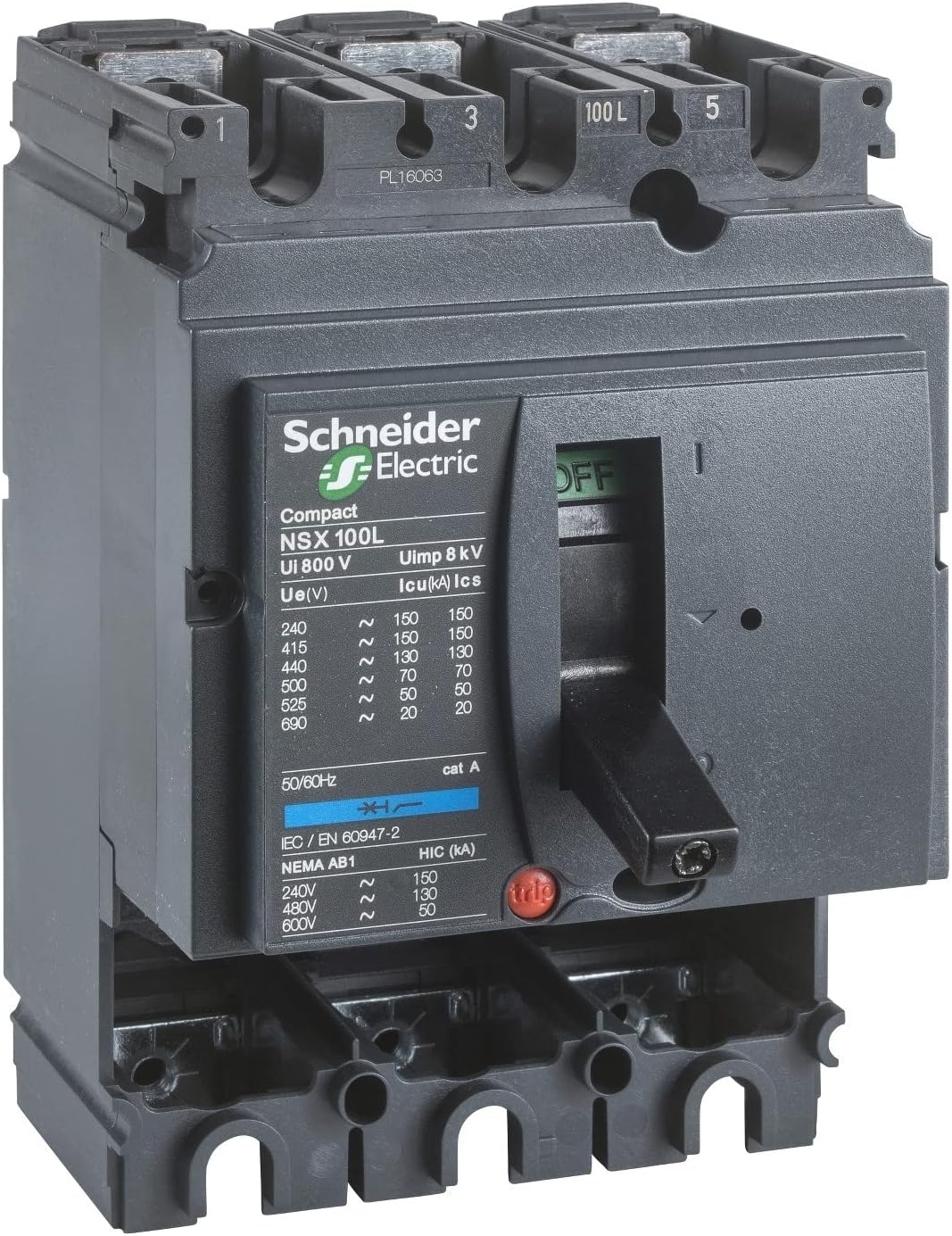

Complementary
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity
- 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
- 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
- 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
- 7.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 50000 cycles conforming to IEC 60947-2
Electrical durability
- 10000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2
- 20000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2
- 30000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2
- 50000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
Mounting support Backplate
Upside connection Front
Downside connection Front
Connection pitch 35 mm
Protection type Without protection
Width (W) 105 mm
Height (H) 161 mm
Depth (D) 86 mm
