Complementary
Phase Three phase
[Us] rated supply voltage 208…480 V – 15…10 %
Supply frequency 50…60 Hz – 5…5 %
Continuous output current 6 A 8 kHz
Output current 3s peak 18 A
Continuous power 3.3 kW
Nominal power 1.8 kW
Switching frequency 8 kHz
Overvoltage category III
Electrical connection Terminal 0.75…5.3 mm2, AWG 18…AWG 10 CN1)
Tightening torque CN1 6.02 lbf.in (0.68 N.m)
Number of inputs 4 digital
Discrete input voltage 24 V DC
Number of outputs 2 digital
Discrete output voltage 24 V DC
Contact bounce time > 1 ms compliment of STO_A, compliment of STO_B
Communication interface SERCOS III, Integrated
Width 1.9 in (48 mm)
Height 10.6 in (270 mm)
Depth 8.5 in (217 mm)
Product Weight 4.2 lb(US) (1.9 kg)

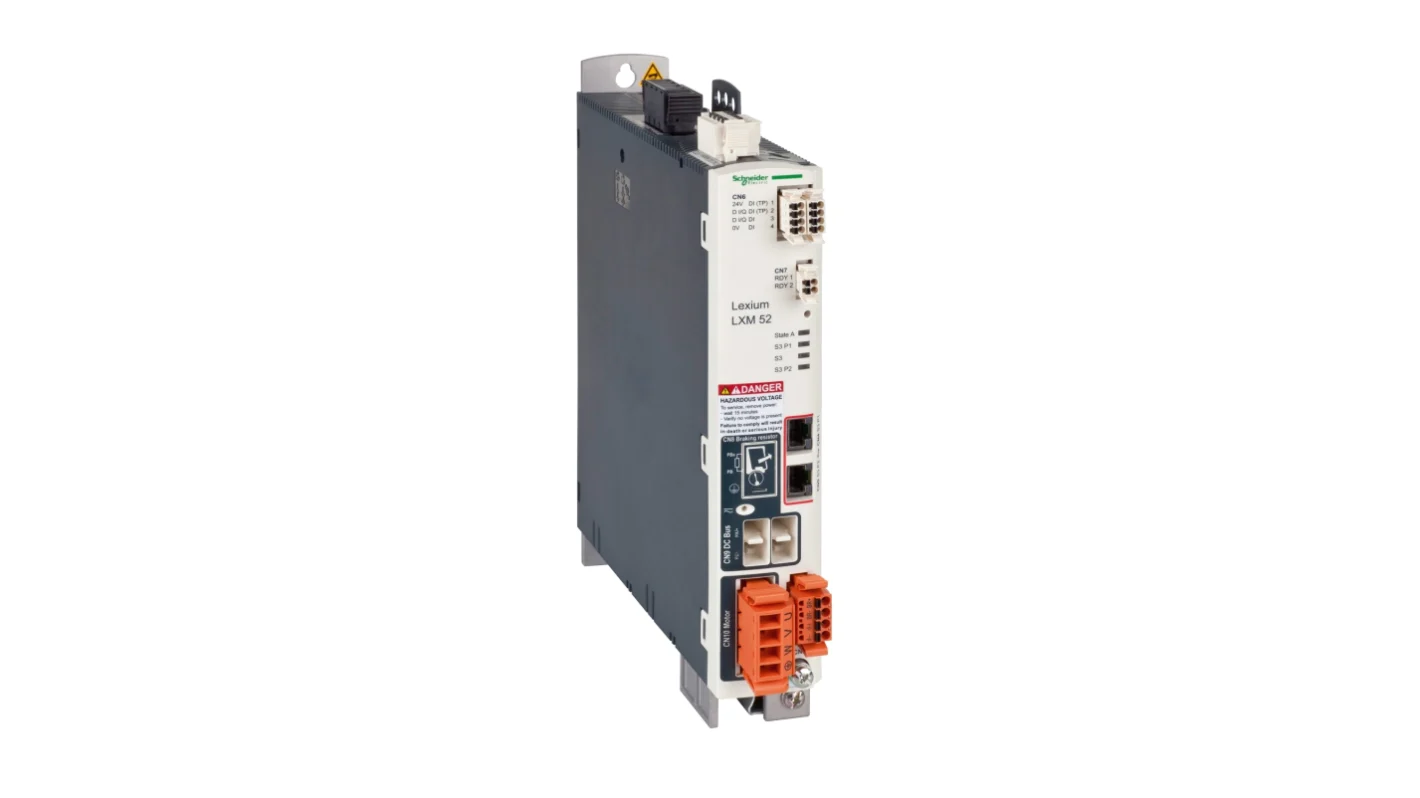

LXM52 single drive 6A/18A
د.إ3,830.00
Main
Range of Product PacDrive 3
Device short name LXM 52
Product or Component Type Single drive
Component name LXM52
