Complementary
Short-time protection pick-up adjustment type Isd Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range 5000 A, 6000 A, 2500 A, 3000 A, 4500 A, 4000 A, 5500 A, 6500 A ,3500 A
Short-time protection delay adjustment type tsd Fixed
[tsd] Short-time protection delay adjustment range 0.01 s
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 6500 A
Earth-leakage protection Without
Zone selective interlocking ZSI Without
Local signalling Flashing LED (green) for ready to operate

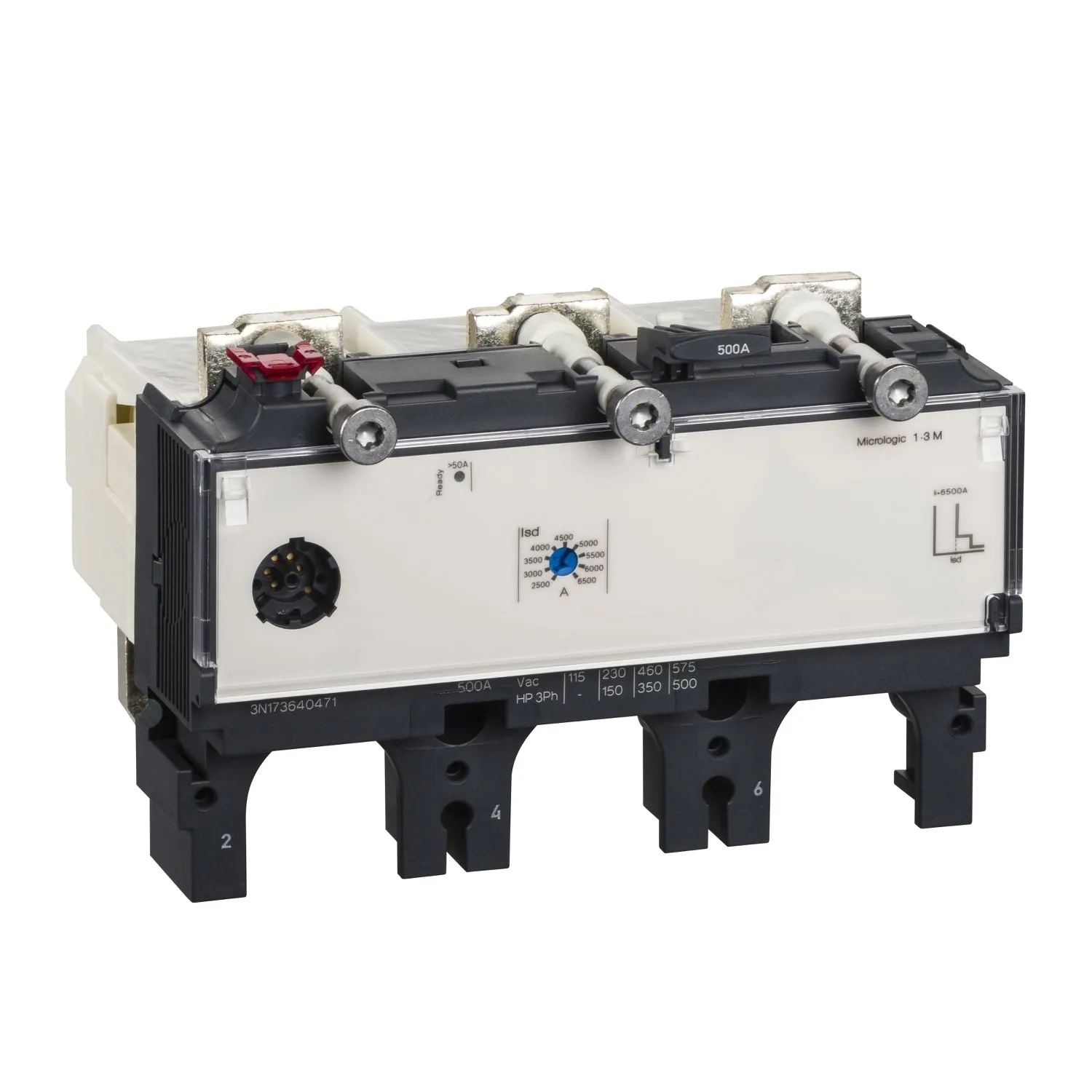

Trip unit MicroLogic 1.3 M for ComPact NSX 630 circuit breakers, electronic, rating 500 A, 3 poles 3d
د.إ2,066.00
Main
Range ComPact
Range of product ComPact NSX400…630
Product or component type Trip unit
Trip unit name MicroLogic 1.3 M
Trip unit technology Electronic
Range compatibility ComPact NSX630
Device application Motor
Number of poles 3P
Protected poles description 3t
Trip unit protection functions I
Protection type I : for short-circuit protection (magnetic)
Trip unit rated current 500 A at 65 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
