Complementary

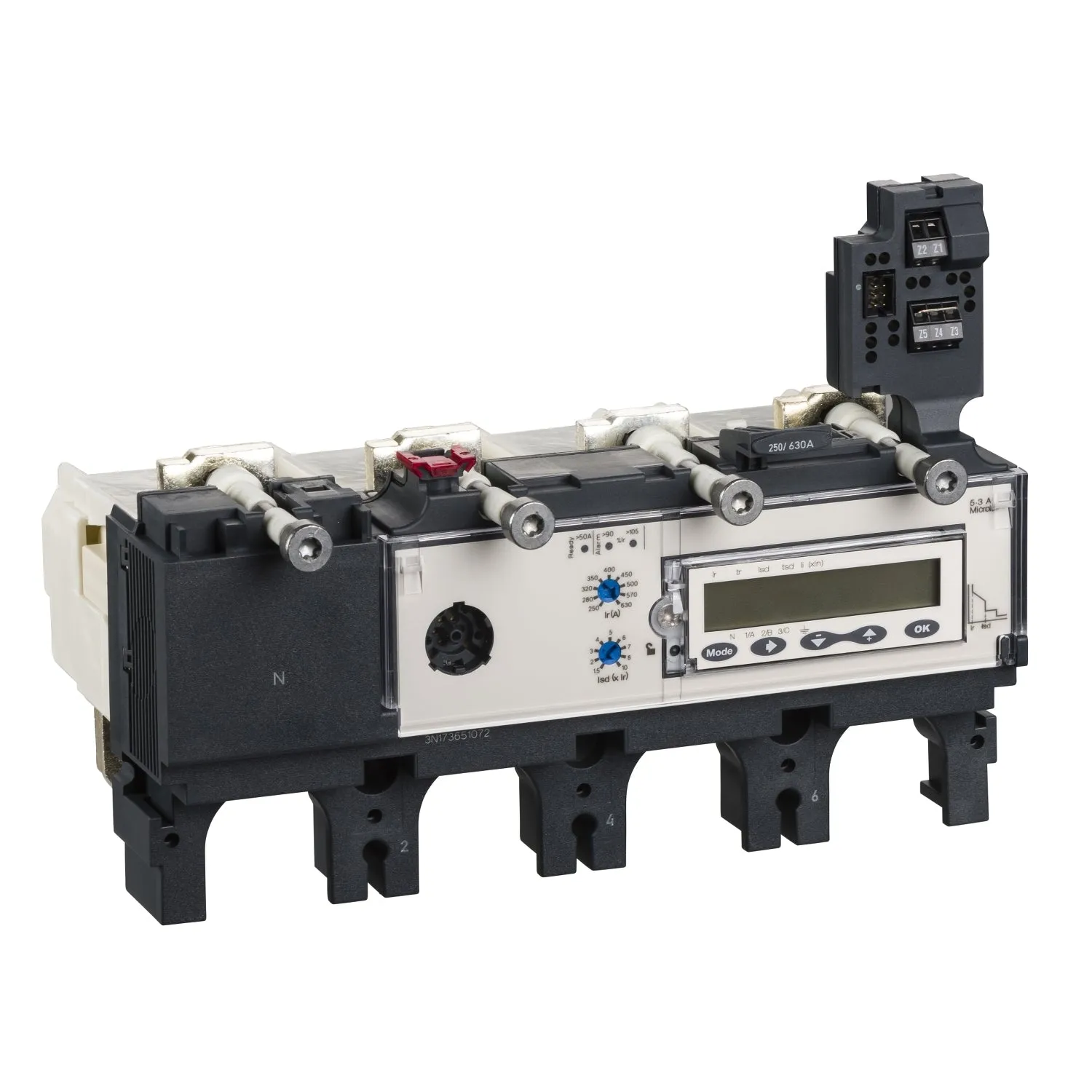

Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range 160…400 A
Long-time protection delay adjustment type tr Adjustable
Thermal memory 20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range 1.5…10 x Ir
Short-time protection delay adjustment type tsd Adjustable
Instantaneous protection pick-up adjustment type Ii Adjustable
[Ii] instantaneous protection pick-up adjustment range 1.5…12 x In
Earth-leakage protection Without
Zone selective interlocking ZSI With
Display type LCD display
Type of measurement Ammeter
Electrical data recording Maintenance indicators
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.00048 cm
Package 1 Width 17.70126 cm
Package 1 Length 21.60016 cm
Package 1 Weight 1.833744 kg
